Alluvial Tin Ore Washing Plant for Tin Ore Process

The flow sheet of alluvial tin ore is usually very easy with simple screening and gravity separation involved to get high grade tin concentrate. For alluvial tin of low single separation degree, ore milling and further gravity separation will be needed after screening and gravity separation to guarantee the concentrate grade and recovery of the whole tin beneficiation processing line.

As a manufacturer of mining jiggers, Gongyi Forui Machinery Factory here will have a share about processing of alluvial tin ore extraction.

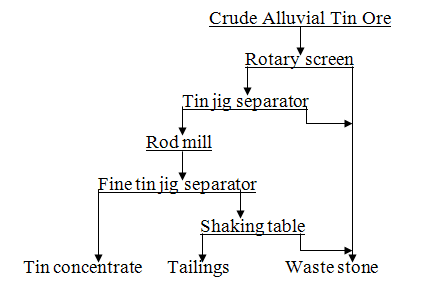

The flow sheet of alluvial tin enrichment is as below:

This flow sheet is designed for alluvial of low single separation degree. The loader will feed the raw tin ore to the rotary screen through feeding device, and here the big gravels will be removed by rotary screen, and the fine sand will be fed to the tin jigger for further separation. The first jigging gravity separation is to recover all tin mineral and this separation guarantees the recovery but not the concentrate grade, so the handling capacity shall be large and the recovery shall be high. Here the trapezoidal jigger of 2LTC6109/8T can help to meet this need.

Tin Ore Deposits In Rwanda

The concentrate from the rough jigger will go for rod mill to be finer and liberate the tin granules from the inlay gangue. Rod mill is widely used as kind of high efficient fine breaking equipment, and this rod mill can avoid over-milling and low tin recovery. The milled tin ore will go for further jigging gravity separation for secondary separation. Here saw tooth wave jig separator will be involved to guarantee the high recovery. The output from jigger can be the final concentrate while the tailings can be recovered by shaking table to improve the recovery rate while the tailings from the shaking table can be deserted directly.

Tin Extraction site in Rwanda

For some alluvial tin of high single separation degree, simple screening and jigging gravity separation can be ok to get high beneficiation efficiency without rod mill and shaking table.

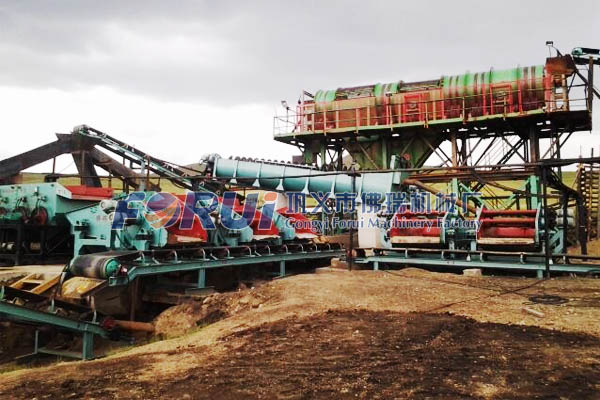

Alluvial Tin ore washing site in Mongolia


Alluvia Tin ore washing site in Mongolia

Forui, as a professional manufacturer of kinds of ore beneficiation equipment, can supply free test for you if samples can be available. And you are high welcome to Forui. Skype of kangforui and mobile phone of +86-18037167566can be available every 24 hours.
