Trommel Screen
Introduction:
Rotary screen is widely used for classifying and screening materials in the fields such as coal-selecting, mineral-separation, building materials, electrical power and chemical industry, etc. And we supplies suitable type according to customers’demands.
According to different sizing specification, the numbers of hierarchical level could be from one to four.The undersized material smaller than the screen apertures passes through the screen wire mesh, while the oversized material passes out at the other end of the drum..
Application:
The rotary screen is widely used for processing the following materials:
1.Crushed stone and concrete ,2.Construction and demolition waste,3.Peat, 4.Sand and gravel, 5.Wood chip, 6.Topsoil.7.Shredded Plastic ,8.Bark, 9.Glass,10.Food Waste
Wood Chip Rotary drum screen
Peat Trommel Screen

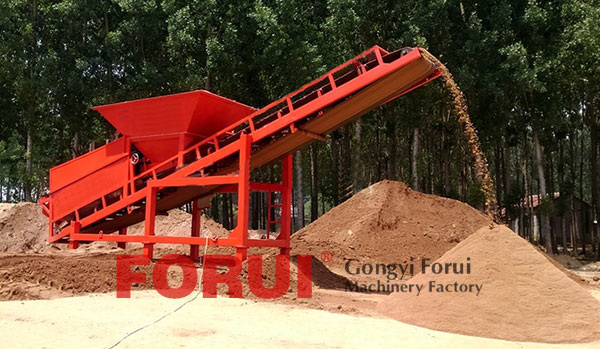

Topsoil trommel screen
Sand and Gravel trommel screen
Technical Parameter
| Model | Drum size | Dip Angle | Rotating Speed(r/min) | Aperture size (mm) | Maximum Feeding Size(mm) | Handling Capacity(T/h) | Power(KW) |
| GTS0820 | Φ800*2000 | 6-10 | 32 | 2-20 | 60 | 7-30 | 3 |
| GTS1030 | Φ1000*3000 | 6-10 | 25 | 2-30 | 80 | 20-70 | 4 |
| GTS1240 | Φ1200*4000 | 6-10 | 20 | 2-40 | 100 | 30-100 | 5.5 |
| GTS1540 | Φ1500*4000 | 6-10 | 17 | 2-50 | 120 | 18-150 | 7.5 |
| GTS1850 | Φ1800*5000 | 6-10 | 14 | 2-60 | 140 | 24-220 | 15 |
| GTS2050 | Φ2000*5000 | 6-10 | 12 | 2-60 | 140 | 50-300 | 15 |
rotary screen is also used in Alluvial/placer gold ore washing
