Two-stage fine crusher
Two-stage fine crusher introduction
Two-stage fine crusher is also called double-rotor hammer type fine crusher.Two-stage crusher is equivalent to combination of two hammer crushers , two-stage crushing at one time, so it can get big broken ratio, generally the output size is below 3mm.
Two-stage fine crusher is particularly suited to crush the bricks and tiles plant slag, shale, coal, coal gangue, construction waste, etc, material. There is no need sieve at the bottom of two-stage fine crusher, it is especially to crush the high-humidity material,soloving the blockage problem with perfect efficent.
work principle of two-stage fine crusher
When two-stage crusher works, driven by the two electric motors, the two sets of rotors that are connected together rotate with high speed at the same time, and the materials inside the chamber are crushed first by the higher rotor and then further crushed by the lower rotor rotating with high speed, and the materials inside the inner chamber will also hit and crush with each other until the materials are crushed to powders and become coal cinder particles whose discharging granularity is smaller than 3mm and this granularity can totally satisfy the requirement of brick plant that uses the coal cinder particles as fuel for making brick.
Application of Two-stage Fine crusher
Technical Parameter of two-stage fine crusher
Model | Feeding size(mm) | Discarge size(mm) | Capacity(T/H) | Motor Power(kw) |
2PC600*400 | <100 | <3 | 15-25 | 18.5+22 |
2PC600*600 | <110 | <3 | 20-30 | 22+22 |
2PC800*600 | <120 | <3 | 35-55 | 45+55 |
2PC800*700 | <120 | <3 | 45-60 | 55+55 |
2PC900*800 | <120 | <3 | 50-70 | 55+75 |
2PC1100*1000 | <130 | <3 | 60-90 | 90+110 |
2PC1200*1000 | <130 | <3 | 80-100 | 110+132 |
2PC1400*1200 | <150 | <3 | 100-120 | 160+160 |
2PC1600*1400 | <180 | <3 | 120-180 | 220+220 |

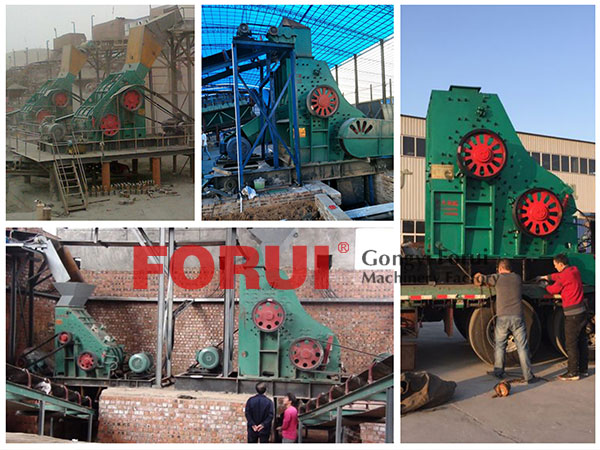

Delivery of two-stage fine crusher
