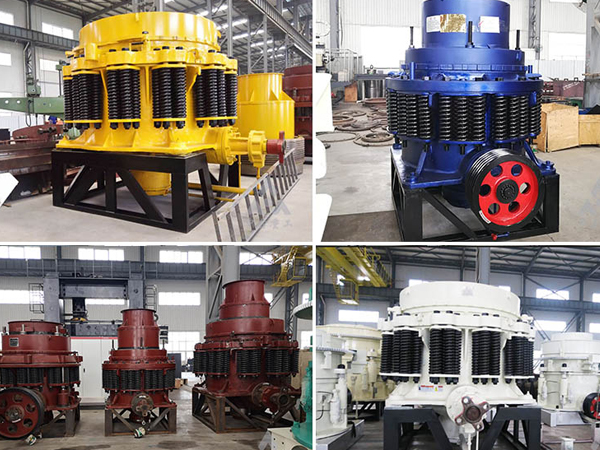

Spring Cone Crusher

Description of Spring Cone Crusher

Spring cone crusher is suitable to crush all kinds of ores and rocks with medium hardness and above. It has features of reliable structure, efficiency, capacity,low operating cost,easy adjustment ,economical to use and so on. Spring system plays the role of overload protection, which will enable the exotic materials or steel piece to pass through the crushing chamber without any damage to the machine. It adopts grease seal to isolate dust and lubricants, therefore ensure its reliable operation. According to customer demand, respectively, using standard type, medium type and short head type for coarse crushing, medium crushing and fine crushing operation.

Features of Spring Cone Crusher

The spring cone crushers by the change of the gap in the crushing cavity, and it has advantages:

1,Strong crushing force;  efficiency;  crushing capacity;

2,Low operation and maintenance cost, easy to adjust;

3,As spare parts selection and structural design is reasonable, the lifespan will be long;

4,Reducing downtime;

5,Different types of crushing chambers to satisfy different customers’ requirement.

Working Principle of Spring Cone Crusher

Spring Cone Crusher is between fixed cone plate and movable cone plate. The motor drives the horizontal axis of the quarry crusher through triangle belt and pulley, the horizontal axis drive the eccentric shaft bush to rotate through gear transmission.
