Beneficiation process of placer gold ores,placer gold ore beneficiation production line.
Gold ore Beneficiation process
The placer gold beneficiation production line is a system for washing and extracting placer gold ore. The placer gold beneficiation production line is generally composed of trommel screen, ore washing machine, jig machine, mercury mixing tube, shaking table ,etc. Depending on the different properties of placer gold ores and the different requirements of customers, some equipment needs to be added or reduced.

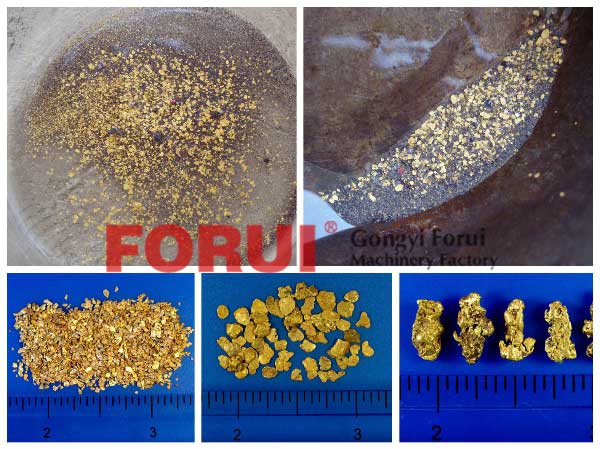

The placer gold beneficiation process is similar to that of placer tin ore. Gold is free in placer gold ore, mostly in the form of flakes or particles, and the gold content in placer is very low.In order to extract gold from placer and obtain rich returns, a set of highly efficient and feasible beneficiation process and equipments must be adopted. Here, Forui Machinery will briefly introduce the placer gold beneficiation production line for your reference.
Step 1:screening

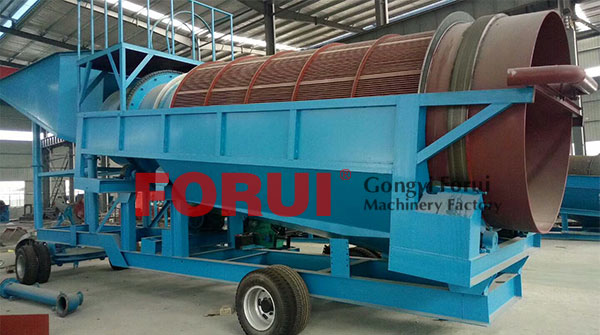

Generally, large stones such as pebbles in placer gold ores are completely free of gold, but their content accounts for 20% to 80%.Therefore ,in the early stage of placer gold beneficiation, sieving and discarding such waste stones is of great significance to improve the working efficiency of the placer gold beneficiation production line.The screening process of placer gold mine usually adopts trommel screen or vibrating screen.
Step 2:washing
If the placer gold ore contains cohesive soil, (gold particles are easily wrapped by cohesive soil), in order to free most of the gold particles, the ore must be washed .For the placer gold ore with a big cohesive soil content, the cylinder washing machine is usually adopted. For the placer gold with little mud content, it can be directly sent tothe gravity beneficiation process after screening.
Step 3:gravity Separation

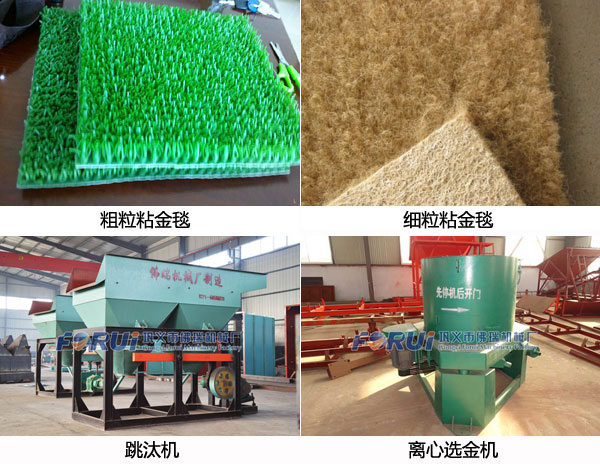

The gravity beneficiation process of placer gold ores mostly uses jig machines or chutes as rough separation equipment.For the placer gold ore with high gold content, it is recommended to use jig machine to ensure the highest recovery rate.For the placer gold ore with low gold content, it is recommended to use chute to ensure maximum processing capacity.
Step 4:refining

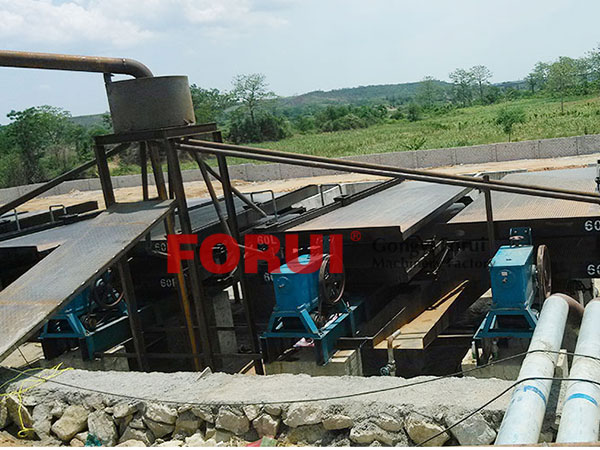

Gold can be directly extracted with amalgamation barrel or shaking table from the rough gold concentrate (which is enriched by jig machine or chute in step 3)

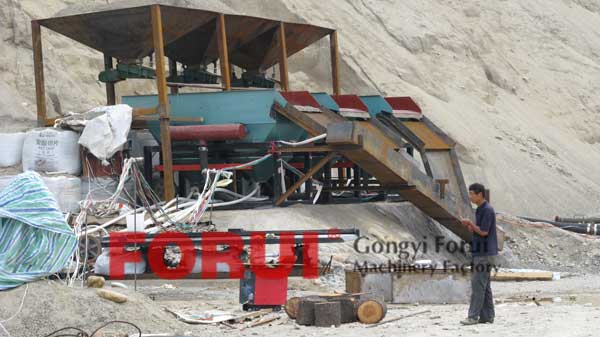

video of placer gold ore beneficiation by Forui laboratory jig machine :
Equipment configuration of Sichuan placer gold ore beneficiation:trommel screen for sieveing, jig machine for rough beneficiation,shaking table for refining.This production line processes 1,500 cubic meters of placer gold ore and recovers 300 grams of gold per day. Customers are very satisfied.

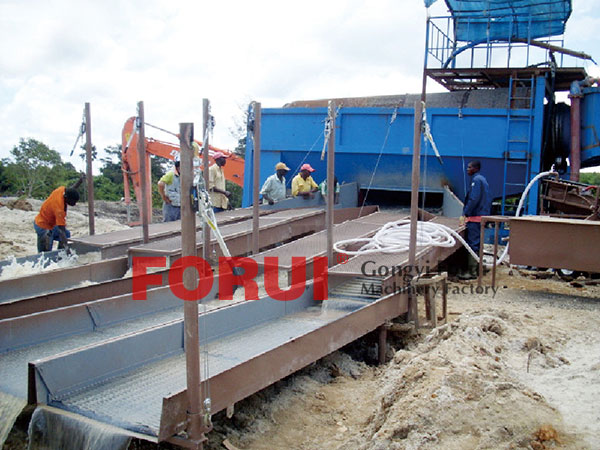

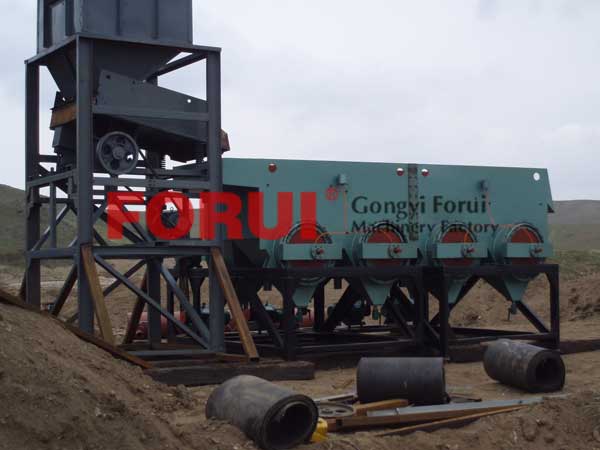

photo of Inner Mongolia placer gold ore beneficiation production line :
Equipment configuration of Inner Mongolia placer gold ore beneficiation:trommel screen for sieveing, trapezoida jig machine for gravity beneficiation,shaking table for refining.This production line processes 500 cubic meters of placer gold ore and recovers 300 grams of gold per day. The customers gave us a high evaluation.
Gongyi Forui Machinery Factory is a professional jig R & D manufacturer,We has rich practical experience in placer gold beneficiation and has set up a special test platform, which can conduct mineral processing test for customers free of charge.
