log washer，twin shaft log washer for clay washing
Log washer introduction
Log Washers are ideal for scrubbing difficult materials such as tough insoluble clays, conglomerates, soft stone and cemented aggregate.
working principle of log washer
Log Washers assist in breaking down heavy plastic clay, conglomerates, and certain types of soft stone that may be present in ore, crushed rock, or gravel. Scrubbing is accomplished by the severe abrading action of corrugated faced Hard shoes mounted on the spuds welded to the log shafts. The log shafts rotate in opposite directions. The two log shafts are timed to obtain an overlap of the paddle shoes for maximum scrubbing action.
Feature of Log washer
1.The main shaft adopts thickened seamless tube, Eliminating Welding Stress on the welding part, preventing the deformation of the main shaft and ensuring the long service life.
2.Thickened wear-resistant material scrubbing blade, connected by high-strength bolts, not welding, easy to replace.
3.The blades are helically distributed, helpful to push the cleaned material forward, no block, ensure the washing capacity
4.Multi-stage sealed bearing, can avoid the fine sands wear the bearing; high weir plate keep more water to soak the clay thoroughly, ensure the washing effect.
5.Two motors drive, more powerful
Shipment of log washer
Application of log washer
techinical parameter of log washer
Technical Parameter of Log washer
| Model | Size(long×wide) mm | Feeding Size(mm) | Inclination angle(°) | Rotating Speed(r/min) | Cpacity( t/h) | Power(KW) |
| XK1156 | 5600×1100 | 50 | 14 | 20/24/27 | 20-30 | 11 |
| XK1572 | 7200×1500 | 70 | 11-14 | 20/24/27 | 30-60 | 22 |
| XK1876 | 7600×1800 | 70 | 12 | 24 | 40-80 | 37 |
| XK2080 | 8000×2000 | 70 | 12 | 22 | 50-100 | 45 |
| XK2284 | 8400×2200 | 70 | 14 | 17 | 70-120 | 55 |

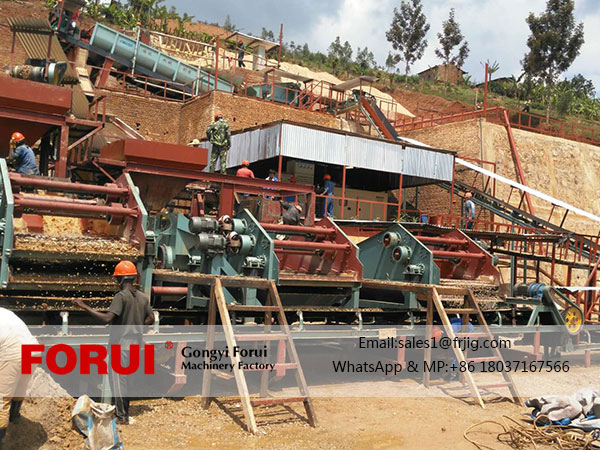

Log Washer for alluvial Coltan washing In Rwanda
